D-Link DES-1005P 5-Port 10/100 Unmanaged Metal Desktop Switch with 1 PoE Port Item # 727724

 |

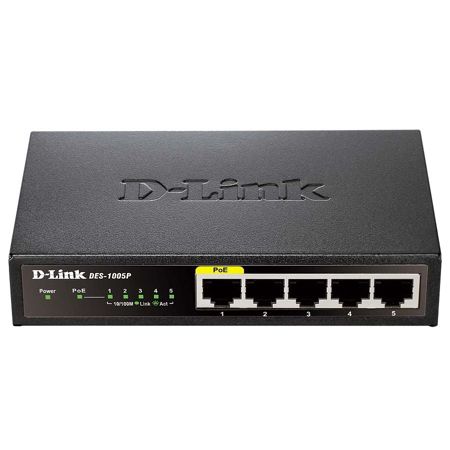

D-Link DES-1005P 5-Port 10/100 Unmanaged Metal Desktop Switch with 1 PoE Port
$ 47 .99 / each $47.99
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    The DES-1005P offers an economical way for SOHO users to not only enjoy the benefit of having a five-port network switch, but having a five-port network switch with one of those ports PoE enabled. Users can then easily create a PoE home surveillance system even in locations where power sockets are limited. The addition of a PoE port to a five port switch allows SMB users an alternative to larger, more expensive switches, without having to sacrifice the need to power PoE devices.

    Back To Top

    Product Details

    Item # 727724
    Manufacturer # 3213122
    Power Over Ethernet (PoE) PoE
    Ethernet Technology Fast Ethernet
    power source AC adapter
    Uplink Port
    Total Number of Network Ports 5
    height 1.1 in.
    Number of PoE (RJ-45) Ports 1
    Number of Network (RJ-45) Ports 4
    Certifications & Standards FCC Class B; ICES-003 Class B; cUL; CE; IEEE 802.3af; IEEE 802.3; IEEE 802.3u; ANSI/IEEE 802.3; IEEE 802.3x; IEEE 802.1p; IEEE 802.3az
    PoE (RJ-45) Port Yes
    width 5.5 in.
    Manageable No
    depth 3.3 in.
    Product Name DES-1005P 5 Port 10/100 Desktop Switch with 1 PoE Port
    manufacturer D-Link Systems, Inc
    brand name D-link
    USB No
    Redundant Power Supply Supported No
    Input Voltage 48 V DC
    Media Type Supported Twisted Pair
    Management Port No
    Layer Supported 2
    form factor Desktop; Wall Mountable
    MTBF 324616 Hour
    Token Ring Port No
    Bypass No
    Modular No
    warranty length limited lifetime
    model name DES-1005P
    Network Technology 10/100Base-TX
    LRE Port No
    Stack Port No
    Show More ▾
    Back To Top

      Customer Reviews

      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Description

      • Overview

        The D-Link DES-1005P 5-port 10/100 Unmanaged Desktop Switch with one PoE Port allows you to easily connect a Power over Ethernet (PoE) device such as a wireless access point (AP), IP camera, or IP phone to your existing network. The switch also gives you the opportunity to add additional Ethernet devices such as computers, printers, and Network Attached Storage (NAS) onto your network. This compact PoE switch operates quietly, making it ideal for use in virtually any room or office.

      • Power over Ethernet (PoE)

        The first port of the DES-1005P supports the IEEE 802.3af PoE standard. The port supplies a total PoE budget of 15.4 watts, allowing users to attach any IEEE 802.3af compliant device to the DES-1005P. Use PoE for applications that are far from power outlets or when you want to minimize the clutter of extra cables.

      • Conserves energy

        The DES-1005P makes use of D-Link Green™ eco-friendly technology, providing energy savings, reduced power consumption, and a longer product life without sacrificing operational performance or functionality. This switch helps to conserve energy through methods such as Link Status and Cable Length Detection. The Link Status feature automatically powers down ports that have no link, allowing the switch to save substantial amounts of energy by cutting power for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjust power usage accordingly, helping you save energy without affecting networking performance. In addition, the fan-less design extends the switch’s life and also reduces noise.

      • Auto MDI/MDIX crossover

        All ports in the DES-1005P support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

      • Limited Lifetime Warranty

        D-Link offers a Limited Lifetime Warranty on the DES-1005P unmanaged PoE switch to further its commitment to product quality and long-term customer confidence.

      Features

      High-Speed Networking

      • Five 10/100 Mbps Fast Ethernet Ports

      • Full/half-duplex for Ethernet/Fast Ethernet speeds

      Power over Ethernet

      • IEEE 802.3af compliant PoE on port 1

      • 15.4W PoE power budget

      Reliability

      • IEEE 802.3x flow control

      • Store-and-forward switching scheme

      • Fanless – silent operation

      Easy Setup

      • Plug-and-play installation

      • Auto MDI/MDIX crossover for all ports

      Images

      {"images":[{"assetWrapper":"image-gallery","description":"Front Image of DES-1005P 10/100 Desktop Switch","runtimeSrc":{"height":683,"width":1016,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-d8df5f97-341b-41fb-a6cc-1bef5f79760c.jpg.web.jpg"},"caption":"DES-1005P Front Image","isAdaCompliant":true,"src":{"height":683,"width":1016,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-d8df5f97-341b-41fb-a6cc-1bef5f79760c.jpg"},"sources":[{"height":645,"width":960,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-d8df5f97-341b-41fb-a6cc-1bef5f79760c.jpg.w960.jpg","profile":"W960"},{"height":322,"width":480,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-d8df5f97-341b-41fb-a6cc-1bef5f79760c.jpg.w480.jpg","profile":"W480"},{"height":161,"width":240,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-d8df5f97-341b-41fb-a6cc-1bef5f79760c.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","description":"Side Image of DES-1005P 10/100 Desktop Switch","runtimeSrc":{"height":669,"width":1181,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-d1328687-f769-4287-ad4b-dab2509099a5.jpg.web.jpg"},"caption":"DES-1005P Side Image","isAdaCompliant":true,"src":{"height":669,"width":1181,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-d1328687-f769-4287-ad4b-dab2509099a5.jpg"},"sources":[{"height":543,"width":960,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-d1328687-f769-4287-ad4b-dab2509099a5.jpg.w960.jpg","profile":"W960"},{"height":271,"width":480,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-d1328687-f769-4287-ad4b-dab2509099a5.jpg.w480.jpg","profile":"W480"},{"height":135,"width":240,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-d1328687-f769-4287-ad4b-dab2509099a5.jpg.w240.jpg","profile":"W240"}]},{"assetWrapper":"image-gallery","description":"Back Image of DES-1005P 10/100 Desktop Switch","runtimeSrc":{"height":575,"width":1016,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-ac9f6187-65f3-42fb-bef8-33f6d21008c7.jpg.web.jpg"},"caption":"DES-1005P Back Image","isAdaCompliant":true,"src":{"height":575,"width":1016,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-ac9f6187-65f3-42fb-bef8-33f6d21008c7.jpg"},"sources":[{"height":543,"width":960,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-ac9f6187-65f3-42fb-bef8-33f6d21008c7.jpg.w960.jpg","profile":"W960"},{"height":271,"width":480,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-ac9f6187-65f3-42fb-bef8-33f6d21008c7.jpg.w480.jpg","profile":"W480"},{"height":135,"width":240,"src":"/_cp/products/1332455019748/tab-1a75c938-9bdc-4a17-a0d5-1b83ccde0821/resource-ac9f6187-65f3-42fb-bef8-33f6d21008c7.jpg.w240.jpg","profile":"W240"}]}]}

      Specifications

      Technical Specifications

      General

      Number of Ports

      • Five 10/100 Mbps Ports including one PoE enabled

      Switching Capacity

      • 1 Gbps

      Standards

      • IEEE 802.3 10BASE-T Ethernet
      • IEEE 802.3u 100BASE-TX Fast Ethernet
      • ANSI/IEEE 802.3 NWay Auto-negotiation
      • IEEE 802.3x Flow Control
      • IEEE 802.1p QoS

      PoE Features

      • Supports IEEE 802.3af
      • Supplies up to 15.4 watts of power to PD

      Data Transfer Rates

      • Ethernet:
      • 10 Mbps (half duplex)
      • 20 Mbps (full duplex)
      • Fast Ethernet
      • 100 Mbps (half duplex)
      • 200 Mbps (full duplex)

      Network Cables

      • 10BASE-TUTP CAT 3/4/5/5e (100 m max.)
      • EIA/TIA-586 100-ohm STP (100 m max.)
      • 100BASE-TXUTP CAT 5/5e (100 m max.)
      • EIA/TIA-568 100-ohm STP (100 m max.)

      Media Interface Exchange

      • Auto MDI/MDIX adjustment for all ports

      LED Indicators

      • Per port: Link/Activity/Speed/PoE Status
      • Per device: Power/PoE Max

      Transmission Method

      • Store-and-forward

      MAC Address Table

      • 2K Entries per device

      MAC Address Learning

      • Automatic update

      Packet Filtering/Forwarding Rates

      • Ethernet: 14,880 pps per port
      • Fast Ethernet: 148,800 pps per port

      RAM Buffer

      • 64 KBytes per device

      D-Link Green

      • IEEE 802.3az Energy Efficient Ethernet (EEE)
      • Link status detection power saving
      • Cable length detection power saving

      Physical

      Power Inputs

      • Switching 48 V/0.5 A Level V power adapter

      Power Consumption

      • Power On (Standby):DC input: 0.9 watt
      • AC input: 1.8 watts
      • Maximum (PoE Off)DC input: 2.05 watts
      • AC input: 2.7 watts
      • Maximum (PoE On)DC input: 17.29 watts
      • AC input: 20.2 watts

      MTBF

      • 324,616 hours

      Operating Temperature

      • (32 to 104 ˚F) 0 to 40 ˚C

      Storage Temperature

      • 104 to 158 ˚F (-40 to 70 ˚C)

      Operating Humidity

      • 0% to 95% RH non-condensing

      Storage Humidity

      • 0% to 95% RH non-condensing

      Device Dimensions (W x D x H)

      • 5.5 x 3.3 x 1.1 inches (140 x 85 x 28 mm)

      Certifications

      • FCC Class B
      • ICES-003 Class B
      • cUL

      Warranty

      • Limited Lifetime

      Ordering Information

      • DES-1005P     5-Port 10/100 Unmanaged Desktop Switch with One PoE Port
